Basic Information

Place of Origin:

Jiangsu, China

Brand Name:

HENGTONG

Certification:

ISO9001:2008

Model Number:

slotted steel strut channel

Minimum Order Quantity:

500 meters

Price:

$2.00 - $3.00/meters

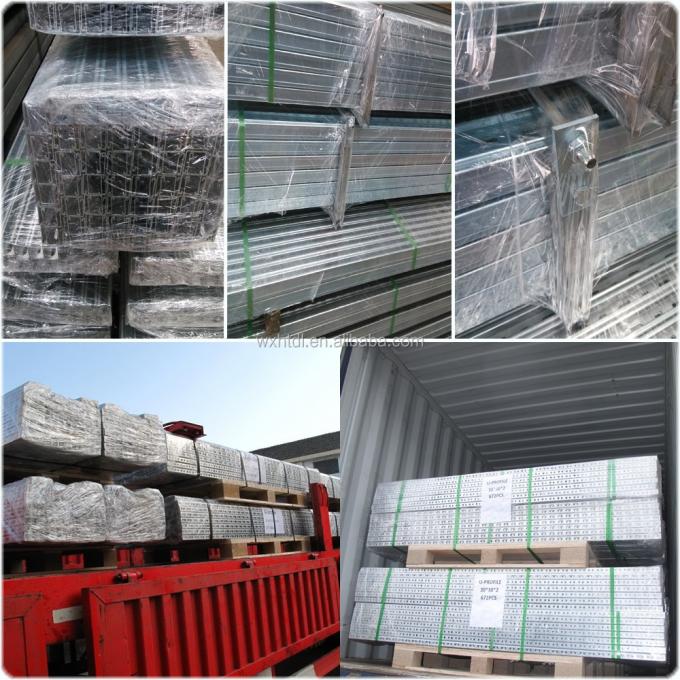

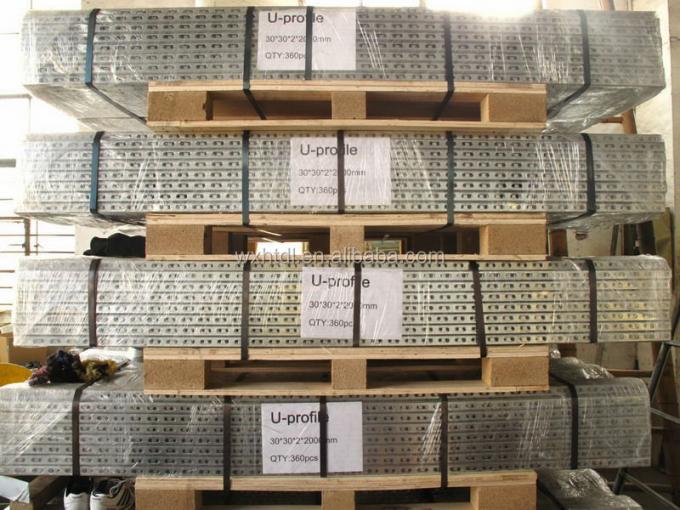

Packaging Details:

c channel are packed in Bundles and strips or by wooden pallets

Supply Ability:

20000 Piece/Pieces per Month

Double 10 Ft 12 Gauge Half Slotted Metal Framing Strut Channel ss

Product Specification

Standard:

AiSi, ASTM, Bs, DIN, JIS

Dimensions:

Strut Channel, 41*21,41*25,41*35,41*41,41*62,41*82

Grade:

Carbon Steel Or Stainles Steel

Shape:

C Channel

Application:

Steel Structure Hanging&Support System

Perforated Or Not:

Not Perforated

Product Name:

Slotted Steel Strut Channel

Processing:

Cold Bending/Roll Forming

Samples Days:

3-5 Days

Material:

Low-carbon Steel

Length:

Normal 3m Or 6m, Other Lengths Are Available

Surface Treatment:

PG, Powder Coated, EG, HDG

Technique:

Cold Bending Steel Channel

Thickness:

1.5mm, 2.0mm, 2.5mm, 3.0mm

Port:

Shanghai

Highlight:

10 ft 12 gauge half slotted metal framing strut channel

12 gauge half slotted metal framing strut channel

double slotted strut channel

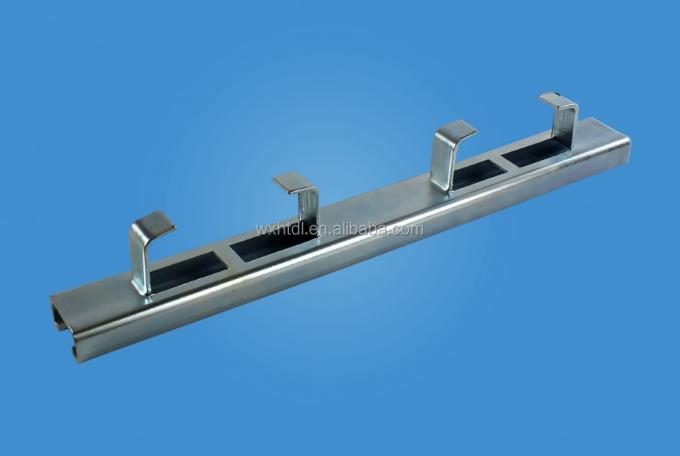

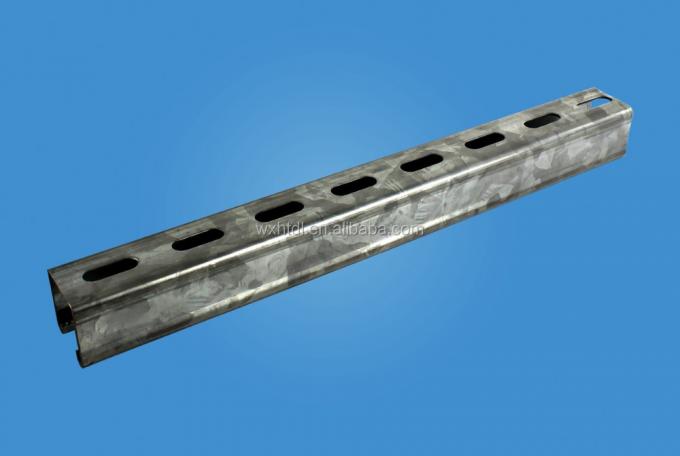

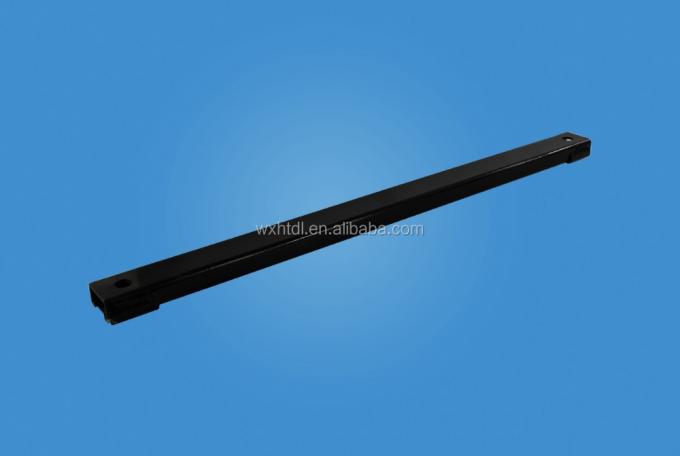

More Images

Our Product Introduction

for more products please visit us on channel-fittings.com

Product Description

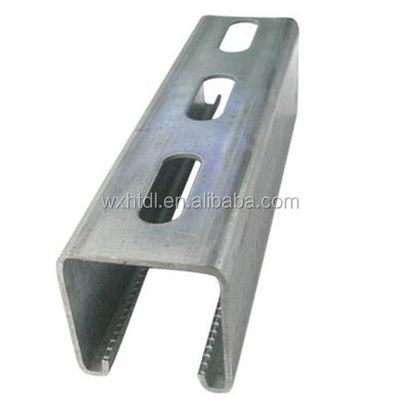

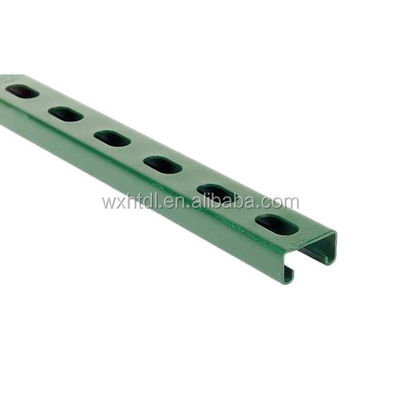

slotted steel strut channel

slotted steel strut channel Brief Description:

Product name: slotted steel strut channel

C cbannel sizes: 41*21mm, 41*25mm, 41*35mm, 41*41mm, 41*62mm, 41*82mm, back to back 41*21mm, 41*25mm, 41*35mm, 41*41mm, 41*62mm, 41*82mm.

Length: Standard length is 3m or 6m, other lengths are acceptable.

Thickness: 1.5mm, 2.0mm, 2.5mm, or others according to your requirements.

Style: Plain or Slotted.

Slots: 76*10.5mm with 100mm on center, 28*14 with 50 on center, 18*9 or 30*13 with 50 on center, 62.5*13.5 with 100 on center, 30*11 with 50 on center

Material: Carbon steel Q235 OR Stainless Steel SS304 or SS316

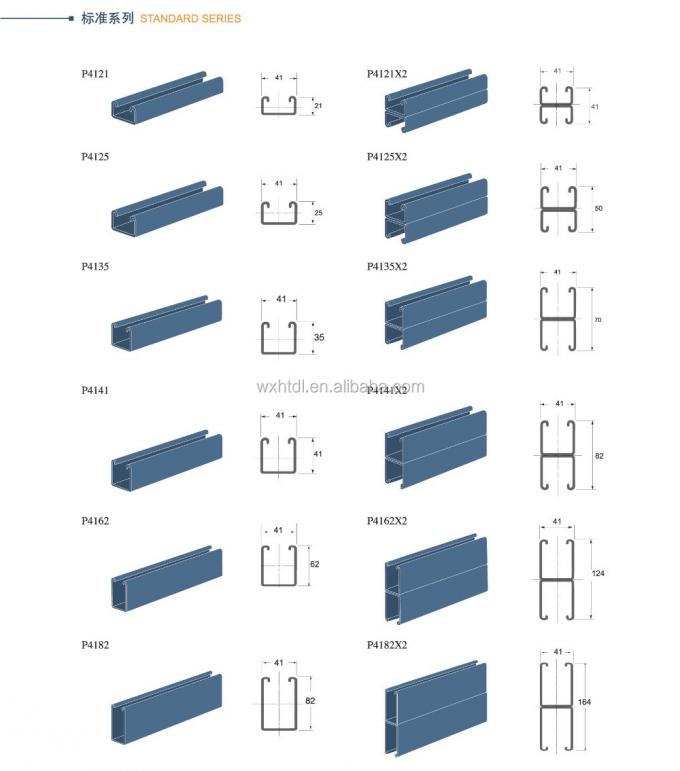

slotted steel strut channel Dimension as follows:

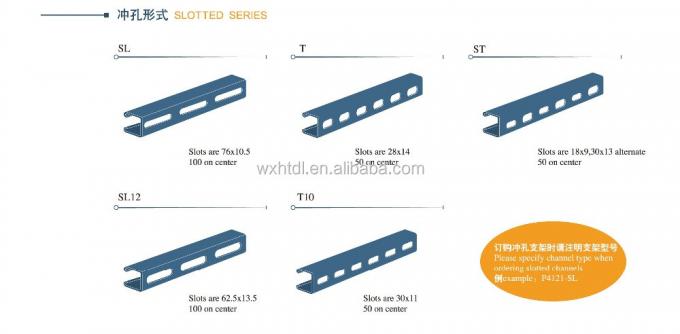

Slotted Series for slotted steel strut channel:

slotted steel strut channel Combinations:

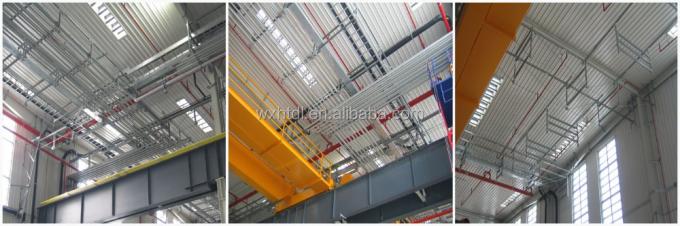

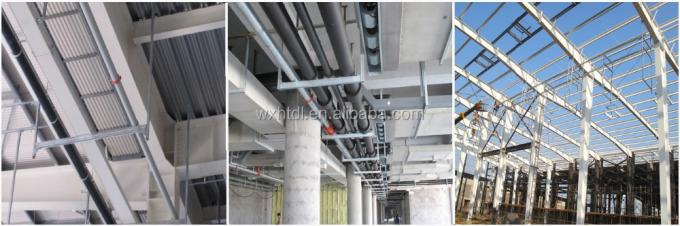

slotted steel strut channel Application:

slotted steel strut channel is used to mount, brace, support, and connect lightweight structural loads in building construction. These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems. Strut channel is also used for other applications that require a strong framework, such as workbenches, shelving systems, equipment racks, etc.Specially made sockets are available to tighten nuts,bolts etc. inside the channel,normal sockets are unable to fit through the opening.

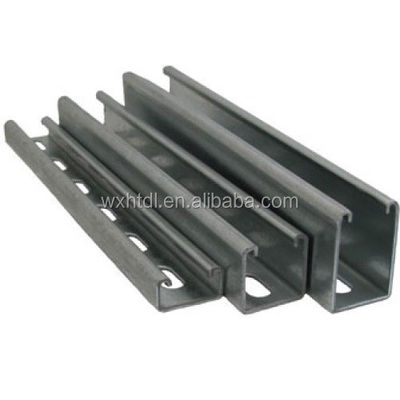

slotted steel strut channel Details:
