Standard Base Plate Steel Frame Connection Fitting For Channel 15-20Kg

500 pieces
MOQ
$0.10 - $2.00/pieces
Price
Standard Base Plate Steel Frame Connection Fitting For Channel 15-20Kg
Features Gallery Product Description Request A Quote
Features
Specifications
After-sale Service: Online Technical Support, Onsite Installation, Free Spare Parts, Return And Replacement
Alloy Or Not: Non-Alloy
Secondary Or Not: Non-secondary
Project Solution Capability: Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation
Application: Hotel
Design Style: Modern
Surface Treatment: Galvanized/stainless Steel
Material: Q235
Usage: Concrete Construction Support
Certificate: ISO 9001
Loading Port: Shanghai/Tianjin/Ningbo
Packing: Carton+pallet
MOQ: 500pcs
Hole Size: 11 14 19
TRADE TERM: FOB CIF CFR EXW
Payment Terms: T/T
Port: Shanghai
High Light:

Standard Base Plate Steel

,

Standard Base Plate Frame

,

Channel Base Plate 15-20Kg

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: HENG TONG
Model Number: L-26F
Payment & Shipping Terms
Packaging Details: packed in cartons and special packages according to customers' request.
Supply Ability: 10000 Piece/Pieces per Month
Product Description

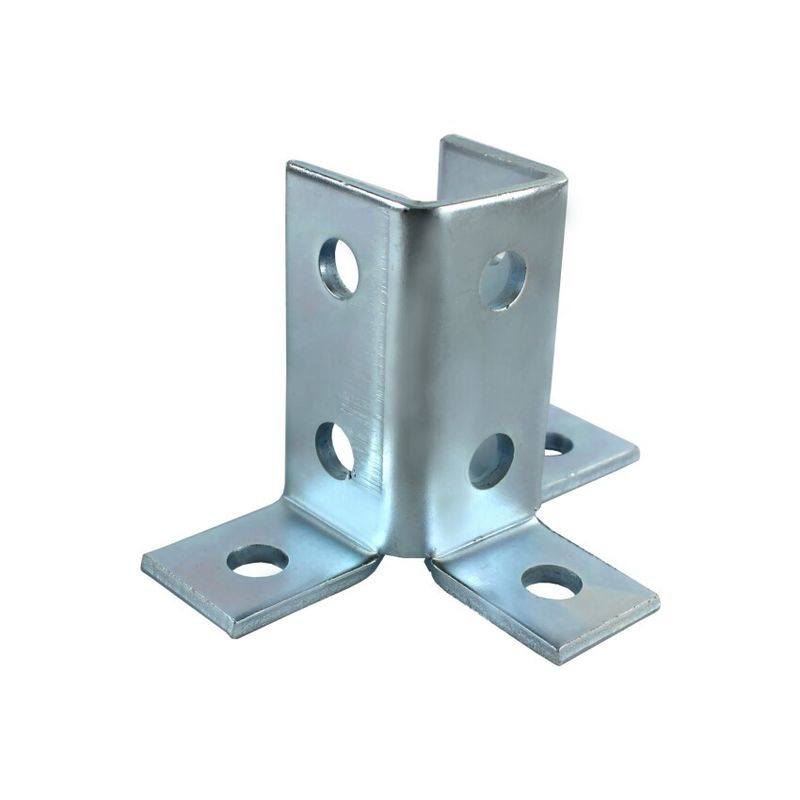

base plate standard steel frame and connection fitting for channel



  1. Channel fittings are also widely applied in HVAC (heating, ventilation, and air conditioning) systems for routing ductwork and pipes.
  2. They provide a secure platform for mounting electrical panels, junction boxes, and control cabinets.
  3. These fittings are suitable for use in seismic zones, as they offer stability and resistance to seismic activities.



connection fitting for channel

1.Thickness is 6mm, hole spacing on center is 47.6mm, hole spacing from end is 20.6mm, width is



40 mm and steel grade is Q235 for all general fittings but special specification.



2.Hole diameter is 11mm for M10 fittings,13mm for M12 fittings but special specification.



3.The series are all manufacture from low-carbon steel with galvanized finish.



4.The series are also available in stainless steel. If you need special application fittings, contact us



for size.

Standard Base Plate Steel Frame Connection Fitting For Channel 15-20Kg 0Standard Base Plate Steel Frame Connection Fitting For Channel 15-20Kg 1Standard Base Plate Steel Frame Connection Fitting For Channel 15-20Kg 2Standard Base Plate Steel Frame Connection Fitting For Channel 15-20Kg 3Standard Base Plate Steel Frame Connection Fitting For Channel 15-20Kg 4Standard Base Plate Steel Frame Connection Fitting For Channel 15-20Kg 5Standard Base Plate Steel Frame Connection Fitting For Channel 15-20Kg 6Standard Base Plate Steel Frame Connection Fitting For Channel 15-20Kg 7Standard Base Plate Steel Frame Connection Fitting For Channel 15-20Kg 8Standard Base Plate Steel Frame Connection Fitting For Channel 15-20Kg 9Standard Base Plate Steel Frame Connection Fitting For Channel 15-20Kg 10
