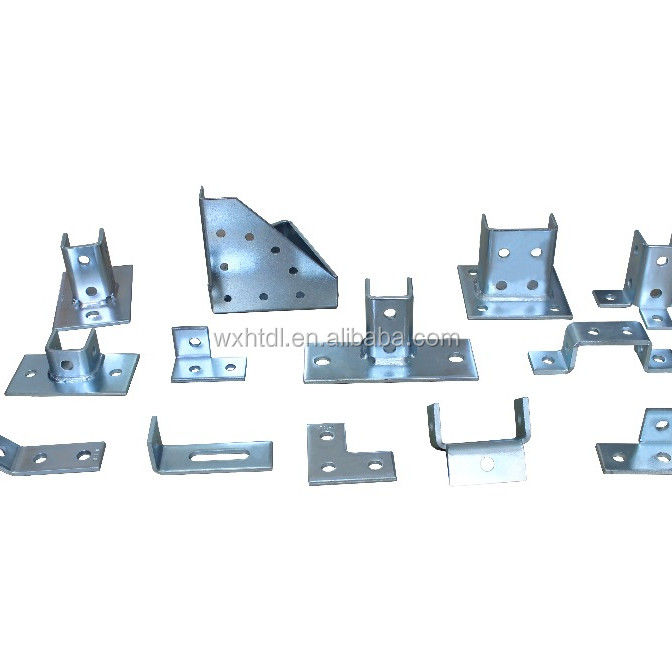

Unistrut 2 Hole 3-Hole 4 Hole Splice Flat Plates Steel Metal Channel Fittings

500 pieces
MOQ
$0.50 - $1.00/pieces
Price
Unistrut 2 Hole 3-Hole 4 Hole Splice Flat Plates Steel Metal Channel Fittings
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Stainless Steel
Finished: Galvanized
Port: SHANGHAI
High Light:

Flat splice plate

,

unistrut 4 hole splice plate

,

3-Hole Flat Splice Plate

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: HENG TONG
Model Number: L-07D
Payment & Shipping Terms
Packaging Details: packed in cartons and special packages according to customers' request.
Supply Ability: 10000 Piece/Pieces per Month
Product Description

channel fitting flat splice plate



Normal thickness is 6mm, hole spacing on center is 47.6mm, hole spacing from end is 20.6mm, width is 40 mm and steel grade is Q235 for all general fittings but special specification. Other customized thickness is available.



Hole diameter is 11mm for M10 fittings,13mm for M12 fittings but special specification.



The series are all manufacture from low-carbon steel with galvanized finish.



The series are also available in stainless steel. If you need special application fittings, contact us for size.

Business Card

Company: Wuxi Hengtong Metal Framing System Co., Ltd

Address: No.19 Nanhu Road, Nanquan Town, Wuxi, China 214128

Contact: Janie

Skype: jannie.yu88

Tel: 0086-510-68783383





Unistrut 2 Hole 3-Hole 4 Hole Splice Flat Plates Steel Metal Channel Fittings 0Unistrut 2 Hole 3-Hole 4 Hole Splice Flat Plates Steel Metal Channel Fittings 1Unistrut 2 Hole 3-Hole 4 Hole Splice Flat Plates Steel Metal Channel Fittings 2











Unistrut 2 Hole 3-Hole 4 Hole Splice Flat Plates Steel Metal Channel Fittings 3

 Unistrut 2 Hole 3-Hole 4 Hole Splice Flat Plates Steel Metal Channel Fittings 4Unistrut 2 Hole 3-Hole 4 Hole Splice Flat Plates Steel Metal Channel Fittings 5Unistrut 2 Hole 3-Hole 4 Hole Splice Flat Plates Steel Metal Channel Fittings 6
